在电商数据分析、比价系统开发等场景中，商品详情页数据是核心基础。本文将围绕淘宝商品详情页数据接口的合规设计、高效采集与智能解析展开，提供一套可落地的技术方案，重点解决动态渲染、参数加密与数据结构化等关键问题。
一、接口设计原则与合规边界
1. 核心设计原则
合规优先：严格遵循 robots 协议，请求频率控制在平台允许范围内（建议单 IP 日均请求不超过 1000 次）
低侵入性：采用模拟正常用户行为的采集策略，避免对目标服务器造成额外负载
可扩展性：接口设计预留扩展字段，适应平台页面结构变更
容错机制：针对反爬策略变更，设计动态参数自适应调整模块
2. 数据采集合规边界
仅采集公开可访问的商品信息（价格、规格、参数等）
不涉及用户隐私数据与交易记录
数据用途需符合《电子商务法》及平台服务协议
明确标识数据来源，不用于商业竞争或不正当用途

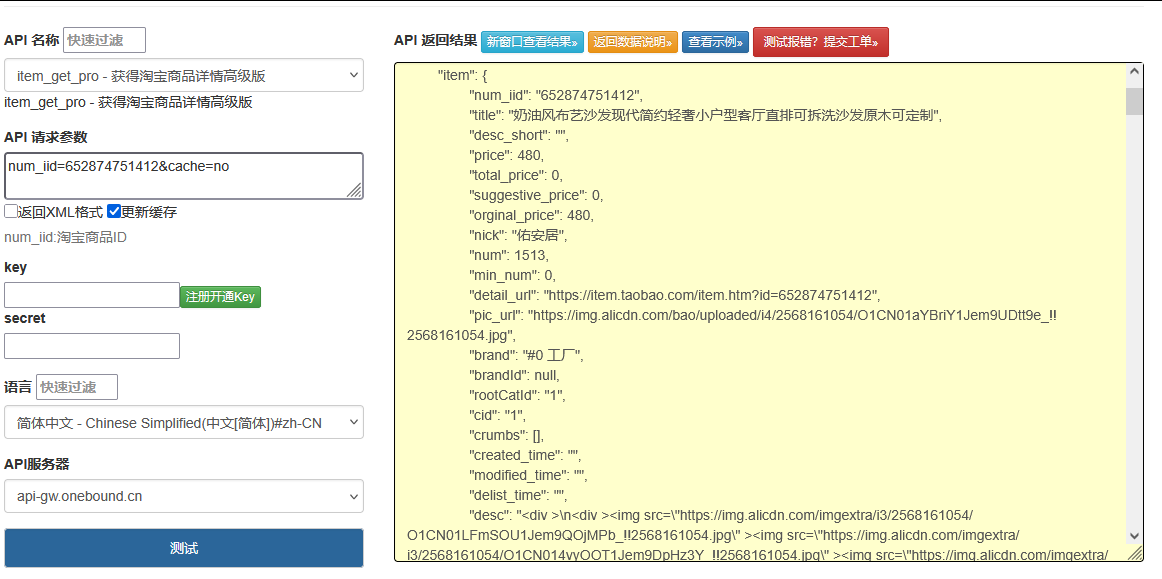

点击获取key和secret
二、接口核心架构设计
plaintext
┌─────────────────┐ ┌─────────────────┐ ┌─────────────────┐
│ 请求调度层 │ │ 数据解析层 │ │ 存储与缓存层 │
│ - 任务队列 │───►│ - 动态渲染处理 │───►│ - 结构化存储 │
│ - 代理池管理 │ │ - 数据清洗 │ │ - 热点缓存 │
│ - 频率控制 │ │ - 异常处理 │ │ - 增量更新 │
└─────────────────┘ └─────────────────┘ └─────────────────┘
1. 请求调度层实现
核心解决动态参数生成、IP 代理轮换与请求频率控制问题：
python
运行
import time
import random
import requests
from queue import Queue
from threading import Thread
from fake_useragent import UserAgent
class RequestScheduler:
def __init__(self, proxy_pool=None, max_qps=2):
self.proxy_pool = proxy_pool or []
self.max_qps = max_qps # 每秒最大请求数
self.request_queue = Queue()
self.result_queue = Queue()
self.ua = UserAgent()
self.running = False
def generate_headers(self):
"""生成随机请求头，模拟不同设备"""
return {
"User-Agent": self.ua.random,
"Accept": "text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8",
"Accept-Language": "zh-CN,zh;q=0.9",
"Connection": "keep-alive",
"Upgrade-Insecure-Requests": "1",
"Cache-Control": f"max-age={random.randint(0, 300)}"
}
def get_proxy(self):
"""从代理池获取可用代理"""
if not self.proxy_pool:
return None
return random.choice(self.proxy_pool)
def request_worker(self):
"""请求处理工作线程"""
while self.running or not self.request_queue.empty():
item_id, callback = self.request_queue.get()
try:
# 频率控制
time.sleep(1 / self.max_qps)
# 构建请求参数
url = f"https://item.taobao.com/item.htm?id={item_id}"
headers = self.generate_headers()
proxy = self.get_proxy()
# 发送请求
response = requests.get(
url,
headers=headers,
proxies={"http": proxy, "https": proxy} if proxy else None,
timeout=10,
allow_redirects=True
)
# 检查响应状态
if response.status_code == 200:
self.result_queue.put((item_id, response.text, None))
if callback:
callback(item_id, response.text)
else:
self.result_queue.put((item_id, None, f"Status code: {response.status_code}"))
except Exception as e:
self.result_queue.put((item_id, None, str(e)))
finally:
self.request_queue.task_done()
def start(self, worker_count=5):
"""启动请求处理线程"""
self.running = True
for _ in range(worker_count):
Thread(target=self.request_worker, daemon=True).start()
def add_task(self, item_id, callback=None):
"""添加请求任务"""
self.request_queue.put((item_id, callback))
def wait_complete(self):
"""等待所有任务完成"""
self.request_queue.join()
self.running = False
2. 动态渲染处理模块
针对淘宝详情页的 JS 动态渲染特性，采用无头浏览器解决数据获取问题：
python
运行
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
from selenium.webdriver.support.ui import WebDriverWait
from selenium.webdriver.support import expected_conditions as EC
from selenium.webdriver.common.by import By
from concurrent.futures import ThreadPoolExecutor
class DynamicRenderer:
def __init__(self, headless=True):
self.chrome_options = Options()
if headless:
self.chrome_options.add_argument("--headless=new")
self.chrome_options.add_argument("--disable-gpu")
self.chrome_options.add_argument("--no-sandbox")
self.chrome_options.add_argument("--disable-dev-shm-usage")
self.chrome_options.add_experimental_option(
"excludeSwitches", ["enable-automation"]
)
self.pool = ThreadPoolExecutor(max_workers=3)
def render_page(self, item_id, timeout=15):
"""渲染商品详情页并返回完整HTML"""
driver = None
try:
driver = webdriver.Chrome(options=self.chrome_options)
driver.get(f"https://item.taobao.com/item.htm?id={item_id}")
# 等待关键元素加载完成
WebDriverWait(driver, timeout).until(
EC.presence_of_element_located((By.CSS_SELECTOR, ".tb-main-title"))
)
# 模拟滚动加载更多内容
for _ in range(3):
driver.execute_script("window.scrollBy(0, 800);")
time.sleep(random.uniform(0.5, 1.0))
return driver.page_source
except Exception as e:
print(f"渲染失败: {str(e)}")
return None
finally:
if driver:
driver.quit()
def async_render(self, item_id):
"""异步渲染页面"""
return self.pool.submit(self.render_page, item_id)
3. 数据解析与结构化
使用 XPath 与正则表达式结合的方式提取关键信息：
python
运行
from lxml import etree
import re
import json
class ProductParser:
def __init__(self):
# 价格提取正则
self.price_pattern = re.compile(r'["\']price["\']\s*:\s*["\']([\d.]+)["\']')
# 库存提取正则
self.stock_pattern = re.compile(r'["\']stock["\']\s*:\s*(\d+)')
def parse(self, html):
"""解析商品详情页HTML，提取结构化数据"""
if not html:
return None
result = {}
tree = etree.HTML(html)
# 提取基本信息
result['title'] = self._extract_text(tree, '//h3[@class="tb-main-title"]/text()')
result['seller'] = self._extract_text(tree, '//div[@class="tb-seller-info"]//a/text()')
# 提取价格信息（优先从JS变量提取）
price_match = self.price_pattern.search(html)
if price_match:
result['price'] = price_match.group(1)
else:
result['price'] = self._extract_text(tree, '//em[@class="tb-rmb-num"]/text()')
# 提取库存信息
stock_match = self.stock_pattern.search(html)
if stock_match:
result['stock'] = int(stock_match.group(1))
# 提取商品图片
result['images'] = tree.xpath('//ul[@id="J_UlThumb"]//img/@src')
result['images'] = [img.replace('//', 'https://').replace('_50x50.jpg', '')
for img in result['images'] if img]
# 提取规格参数
result['specs'] = self._parse_specs(tree)
# 提取详情描述图片
result['detail_images'] = tree.xpath('//div[@id="description"]//img/@src')
result['detail_images'] = [img.replace('//', 'https://')
for img in result['detail_images'] if img]
return result
def _extract_text(self, tree, xpath):
"""安全提取文本内容"""
elements = tree.xpath(xpath)
if elements:
return ' '.join([str(elem).strip() for elem in elements if elem.strip()])
return None
def _parse_specs(self, tree):
"""解析商品规格参数"""
specs = {}
spec_groups = tree.xpath('//div[@class="attributes-list"]//li')
for group in spec_groups:
name = self._extract_text(group, './/span[@class="tb-metatit"]/text()')
value = self._extract_text(group, './/div[@class="tb-meta"]/text()')
if name and value:
specs[name.strip(':：')] = value
return specs
三、缓存与存储策略
为减轻目标服务器压力并提高响应速度，设计多级缓存机制：
python
运行
import redis
import pymysql
from datetime import timedelta
import hashlib
class DataStorage:
def __init__(self, redis_config, mysql_config):
# 初始化Redis缓存（短期缓存热点数据）
self.redis = redis.Redis(
host=redis_config['host'],
port=redis_config['port'],
password=redis_config.get('password'),
db=redis_config.get('db', 0)
)
# 初始化MySQL连接（长期存储）
self.mysql_conn = pymysql.connect(
host=mysql_config['host'],
user=mysql_config['user'],
password=mysql_config['password'],
database=mysql_config['db'],
charset='utf8mb4'
)
# 缓存过期时间（2小时）
self.cache_ttl = timedelta(hours=2).seconds
def get_cache_key(self, item_id):
"""生成缓存键"""
return f"taobao:product:{item_id}"
def get_from_cache(self, item_id):
"""从缓存获取数据"""
data = self.redis.get(self.get_cache_key(item_id))
return json.loads(data) if data else None
def save_to_cache(self, item_id, data):
"""保存数据到缓存"""
self.redis.setex(
self.get_cache_key(item_id),
self.cache_ttl,
json.dumps(data, ensure_ascii=False)
)
def save_to_db(self, item_id, data):
"""保存数据到数据库"""
if not data:
return False
try:
with self.mysql_conn.cursor() as cursor:
# 插入或更新商品数据
sql = """
INSERT INTO taobao_products
(item_id, title, price, stock, seller, specs, images, detail_images, update_time)
VALUES (%s, %s, %s, %s, %s, %s, %s, %s, NOW())
ON DUPLICATE KEY UPDATE
title = VALUES(title), price = VALUES(price), stock = VALUES(stock),
seller = VALUES(seller), specs = VALUES(specs), images = VALUES(images),
detail_images = VALUES(detail_images), update_time = NOW()
"""
# 处理JSON字段
specs_json = json.dumps(data.get('specs', {}), ensure_ascii=False)
images_json = json.dumps(data.get('images', []), ensure_ascii=False)
detail_images_json = json.dumps(data.get('detail_images', []), ensure_ascii=False)
cursor.execute(sql, (
item_id,
data.get('title'),
data.get('price'),
data.get('stock'),
data.get('seller'),
specs_json,
images_json,
detail_images_json
))
self.mysql_conn.commit()
return True
except Exception as e:
self.mysql_conn.rollback()
print(f"数据库存储失败: {str(e)}")
return False
四、反爬策略应对与系统优化
1. 动态参数自适应调整
针对淘宝的反爬机制，实现参数动态调整：
python
运行
class AntiCrawlHandler:
def __init__(self):
self.failure_count = {} # 记录每个IP的失败次数
self.success_threshold = 5 # 连续成功次数阈值
self.failure_threshold = 3 # 连续失败次数阈值
def adjust_strategy(self, item_id, success, proxy=None):
"""根据请求结果调整策略"""
if success:
# 成功请求处理
if proxy:
self.failure_count[proxy] = max(0, self.failure_count.get(proxy, 0) - 1)
return {
"delay": max(0.5, 2.0 - (self.success_count.get(item_id, 0) / self.success_threshold))
}
else:
# 失败请求处理
if proxy:
self.failure_count[proxy] = self.failure_count.get(proxy, 0) + 1
# 超过失败阈值，标记代理不可用
if self.failure_count[proxy] >= self.failure_threshold:
return {"discard_proxy": proxy, "delay": 5.0}
return {"delay": 5.0 + self.failure_count.get(proxy, 0) * 2}
2. 系统监控与告警
实现关键指标监控，及时发现异常：
python
运行
import time
import logging
class SystemMonitor:
def __init__(self):
self.metrics = {
"success_count": 0,
"failure_count": 0,
"avg_response_time": 0.0,
"proxy_failure_rate": 0.0
}
self.last_check_time = time.time()
self.logger = logging.getLogger("ProductMonitor")
def update_metrics(self, success, response_time):
"""更新监控指标"""
if success:
self.metrics["success_count"] += 1
else:
self.metrics["failure_count"] += 1
# 更新平均响应时间
total = self.metrics["success_count"] + self.metrics["failure_count"]
self.metrics["avg_response_time"] = (
(self.metrics["avg_response_time"] * (total - 1) + response_time) / total
)
# 每100次请求检查一次指标
if total % 100 == 0:
self.check_health()
def check_health(self):
"""检查系统健康状态"""
failure_rate = self.metrics["failure_count"] / (
self.metrics["success_count"] + self.metrics["failure_count"] + 1e-9
)
# 失败率过高告警
if failure_rate > 0.3:
self.logger.warning(f"高失败率告警: {failure_rate:.2f}")
# 响应时间过长告警
if self.metrics["avg_response_time"] > 10:
self.logger.warning(f"响应时间过长: {self.metrics['avg_response_time']:.2f}s")
# 重置计数器
self.metrics["success_count"] = 0
self.metrics["failure_count"] = 0
五、完整调用示例与注意事项
1. 完整工作流程示例
python
运行
def main():
# 初始化组件
proxy_pool = ["http://proxy1:port", "http://proxy2:port"] # 代理池
scheduler = RequestScheduler(proxy_pool=proxy_pool, max_qps=2)
renderer = DynamicRenderer()
parser = ProductParser()
# 初始化存储
redis_config = {"host": "localhost", "port": 6379}
mysql_config = {
